Peco XP-L-6400E equivalent

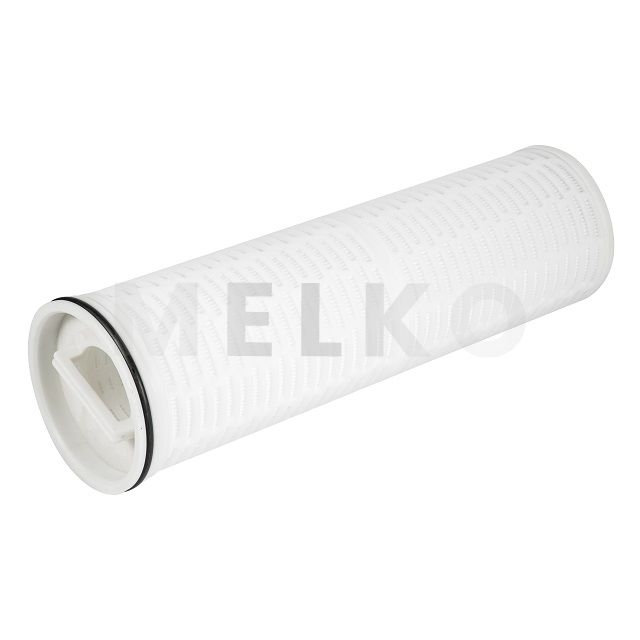

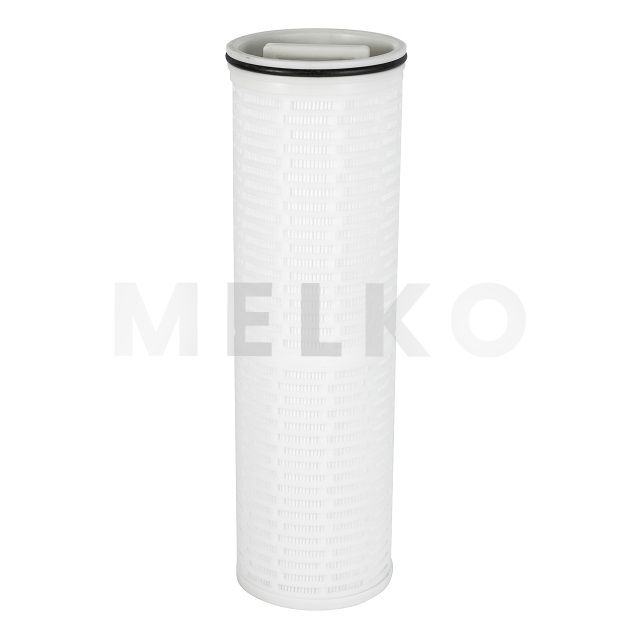

Our High Flow Pleated Filter Cartridge features a large diameter of 152mm with a single-open-end design. It is constructed from deep polypropylene or resin-bonded synthetic glass fiber membrane.
Thanks to its large diameter, the cartridge offers a significantly larger filtration area, which enhances filtration flux and reduces the number of cartridges and filter housings required. The result is longer service life, higher flow rates, and meaningful savings on both equipment investment and labor costs.
MS offers a wide selection of high flow pleated filter cartridges, including compatible alternatives for major international brands such as Pall, 3M, and Parker.
Maximized Flow Rates: The innovative pleat pack geometry and large diameter housing compatibility are designed to handle extremely high flow rates, significantly reducing processing time for large batch operations.
Minimized Energy Consumption: The ultra-low pressure drop characteristic means pumps work less hard to push fluid through the system, leading to substantial energy savings and reduced operational costs.
Extended Service Life: Despite the high flow, the generous pleated surface area provides a large high dirt capacity, allowing it to operate for extended periods without frequent change-outs, even in challenging conditions.
Rugged Industrial Design: Built with reinforced cores and heavy-duty end caps, these cartridges are constructed to withstand the pressure surges and demanding conditions of industrial environments.
| Parameter | Specification |
|---|---|
| Filter Media | Pleated Polypropylene |
| Outer Hard Cage | Polypropylene |
| Outer Netting | Polypropylene |
| End Caps | Glass-filled Polypropylene |
| Outer Diameter | 6" (152 mm) |
| Length | 60" (1524 mm) |
| O-ring Outer Diameter | 160.5 mm |
| O-ring Material | EPDM |
| Micron Rating | 40 μm (Absolute) |
| Filtration Area | 8 m² (at 60" length) |
| Maximum Flow Rate | 113 m³/hr |
| Recommended Flow Rate | 50 m³/hr |
| Maximum Temperature | 80°C |
| Recommended Differential Pressure for Change-out | 2.1 – 2.4 bar |
Irrigation Systems: Perfect as a pleated filter for irrigation systems, protecting drip emitters and sprinklers from clogging by filtering sand, silt, and organic matter from canal, river, or well water.
Municipal Water Pre-Treatment: Used in large-scale water treatment plants as a pre-filter to remove turbidity and protect downstream membranes and adsorption media.
Bulk Chemical Processing: Filters large volumes of solvents, acids, and process chemicals quickly and efficiently, ensuring product quality and protecting equipment.
Ensure the housing is rated for the high flow rates this cartridge can deliver.
Follow standard replacement procedures: depressurize, open housing, replace cartridge, and reassemble.
Due to the high flow, monitor the pressure drop closely. A sharp increase indicates the cartridge is loaded and needs replacement.
Q: Can it handle abrasive fluids?
A: Standard polypropylene pleated filters are suitable for mildly abrasive fluids. For highly abrasive applications, a different media like glass fiber might be recommended.
