Understanding Filtration Ratings in String Wound Cartridges: More Than Just A Patter

In the industrial world, the String Wound Filter is often called the "Workhorse" of pre-filtration. While it looks like a simple spool of yarn, its filtration precision (micron rating) is determined by complex winding geometry.

For technical managers and distributors, understanding how these patterns translate into performance is key to optimizing system costs.

1. The Geometry of Precision: How Patterns Define Microns

Unlike melt blown filters that use thermal bonding, string wound cartridges achieve their micron rating through the controlled arrangement of Diamond-Shaped Openings (often called "honeycombs").

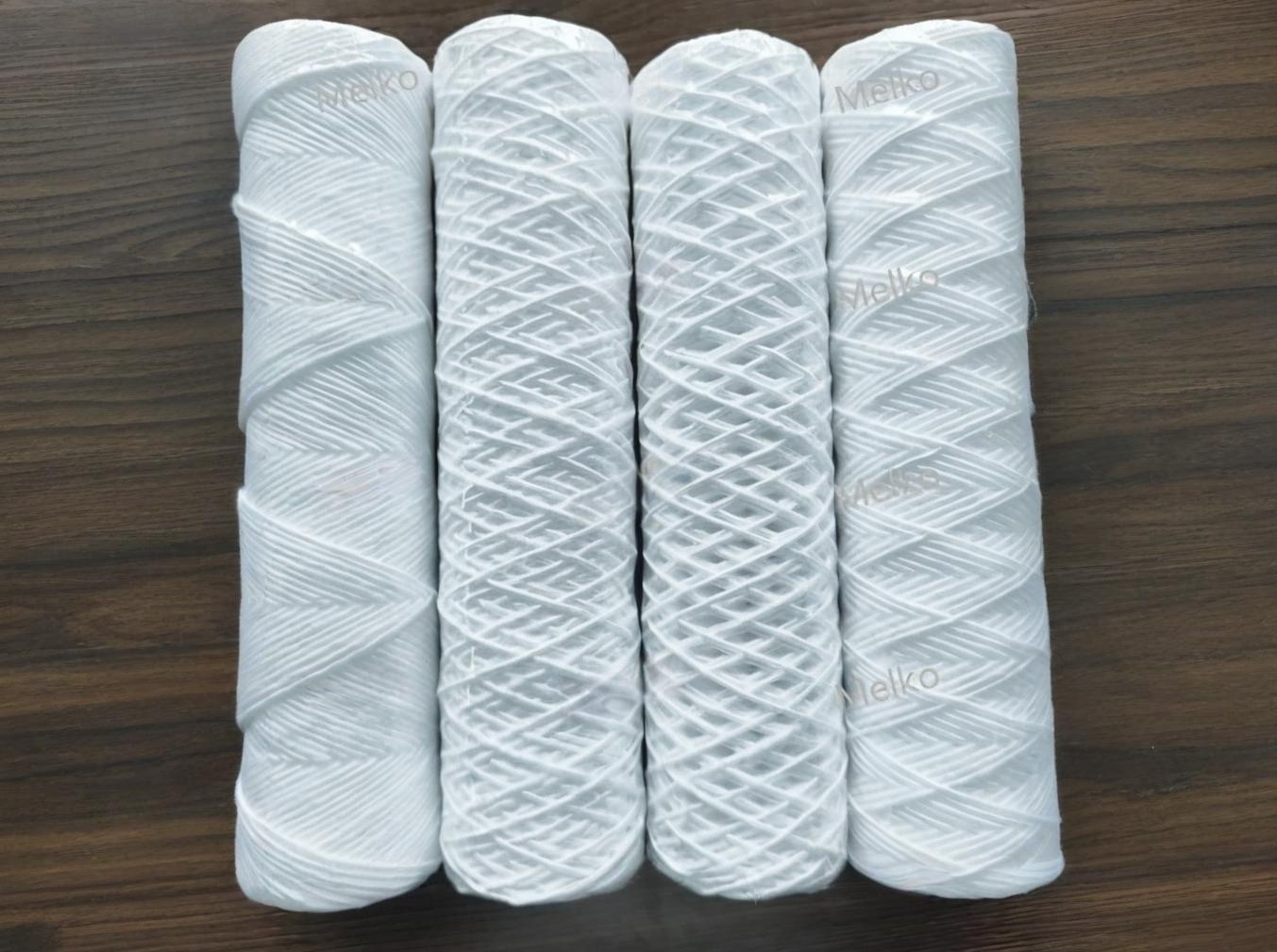

Figure 1: Visual Correlation between Winding Patterns and Micron Ratings

(From Left to Right: Increasing micron ratings achieved by adjusting traverse speed and diamond geometry)

Technical Interpretation:

As shown in Figure 1, the filtration precision is visually represented by the density of the winding pattern:

Tight Patterns (Far Right/Middle): By increasing the rotational speed relative to the traverse movement, the "diamonds" become smaller and more compact. This creates a denser barrier for capturing fine particles (e.g., 1 μm – 5 μm).

Open Patterns (Far Left): A wider traverse movement creates larger honeycomb openings. These are engineered for coarse filtration (50 μm – 100 μm), allowing for high flow rates and high dirt-holding capacity for large sediments.

2. The Secret of "True Gradient Density"

A high-quality string wound filter is not uniform from the outside in. At Melko Filtration, we utilize Computer-Controlled Variable Winding:

Inner Layers (The Final Guard): The yarn is wound with high tension and tight spacing near the core to trap the finest particles.

Outer Layers (The Pre-filter): The winding becomes progressively "loftier" and the diamond patterns larger toward the exterior.

The Result: This creates a True Gradient Density that allows the filter to trap large sediments on the surface and fine particles deep inside, significantly extending the service life compared to standard "tight-only" filters.

3. Material Matters: The "Fuzz" Factor

The precision is also affected by the Yarn Nap (the "fuzziness" of the string).

High-Nap Yarn: The tiny loose fibers bridge the diamond openings, effectively creating a finer filter screen without needing a tighter wind.

Melko Engineering: We select specific yarn types (Polypropylene, Cotton, or Glass Fiber) where the fiber thickness and nap are calibrated to ensure the micron rating remains stable, even under high-flow surges.

4. How to Visually Identify Quality and Precision?

While you cannot determine the exact micron rating just by looking, a technical manager can spot a well-manufactured filter through these signs:

Pattern Consistency: Are the diamonds uniform from top to bottom? Irregular patterns indicate poor tension control, leading to "channeling" where water takes the path of least resistance.

Structural Firmness: A high-precision filter (1 μm) should feel extremely rigid. If the yarn shifts easily when pressed with a thumb, it will likely bypass under pressure.

End-Cap Alignment: For 40-inch wound filters, the pattern must remain perfectly aligned over the long span to prevent axial gaps.

Table 1: Micron Ratings vs. Visual Characteristics

Conclusion: Precision by Design, Not by Chance

At Melko Filtration, we view the string wound cartridge as a piece of precision engineering. By mastering the relationship between winding tension, diamond geometry, and yarn characteristics, we provide our distributors with filters that offer:

• Predictable Pressure Drop.

• Superior Dirt-Holding Capacity.

• Zero Fiber Migration.
