The Science of Structural Integrity: Why A Support Core Is Critical for 40" Melt Blown Filters– And How It Prevents Costly Collapse Failures

In large-scale industrial filtration, the performance of a filter is often judged only by its micron rating. However, for 40-inch systems, the physical structure—specifically the presence of a Reinforced Support Core—is the primary factor determining system stability and operational lifespan.

1. The "Aspect Ratio" Challenge in 40-inch Cartridges

A 40-inch filter has a high aspect ratio (length vs. diameter). Being 4x longer than a standard 10" element but sharing the same diameter makes it inherently less rigid against radial and axial forces. Without internal reinforcement, these long-format filters are susceptible to:

Axial Bending: Leading to bypass at the housing seals.

Radial Collapse: Where the hydraulic pressure flattens the cylinder, causing sudden filtration failure.

2. Preventing "Pore Compression" and Media Deformation

Melt blown media is a non-woven matrix of thermally bonded fibers and is inherently compressible.

The Problem: As differential pressure (ΔP) rises, fluid force pushes the fiber layers inward. In a coreless filter, this compression continues unchecked until structural failure—a phenomenon we call "Pore Compression." The microscopic gaps are squeezed shut, creating a "false plug" where the filter appears clogged even if its dirt-holding capacity is not fully utilized.

The Solution: A high-strength support core provides a rigid foundation. It counteracts the inward force, limiting pore compression and preserving the original gradient density architecture.

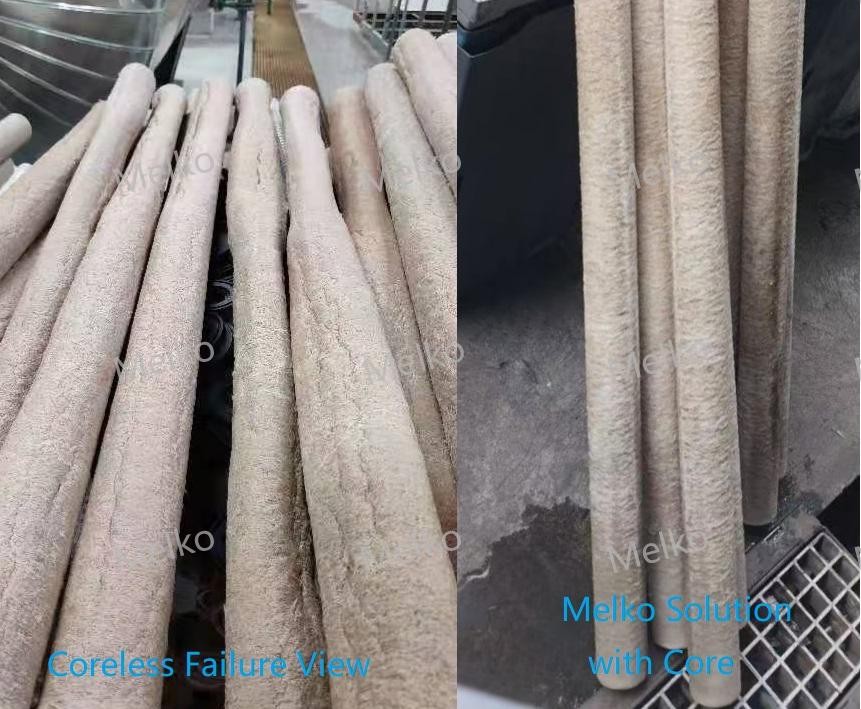

Figure 1: Real-World Performance Comparison

(Left: Competitor Coreless Filter after failure; Right: Melko Solution with Reinforced Core)

Technical Analysis of the Failure (Left):

The image illustrates a catastrophic Radial Collapse. Without an internal backbone, the hydraulic pressure has forced the cylindrical media into a flattened, oval shape.

Media Blinding: The fibers are crushed, leading to an immediate system shutdown.

Fiber Shearing: Notice the deep surface cracks; these are bypass channels where unfiltered water can escape downstream, potentially causing $50,000+ in damage to RO membranes.

3. Optimizing Fluid Dynamics: The High-Flow Center Tube

It is a common engineering misconception that an internal core increases flow resistance. In fact, a professionally designed High-Flow Center Tube improves exit dynamics.

Figure 2: Initial Pressure Drop Curve (Standard 10" Base Component)

Engineering Note on Scalability:

Figure 2 represents the flow dynamics of our standardized 10-inch base element (tested at 20°C). Our center tubes feature a staggered hole pattern with an open area > 40%, allowing the permeate to transition quickly into the central plenum.

At 1 μm: A 10" element at 20 LPM shows a ΔP of 8 Kpa (sim 1.16 psi).

Consistency: This low-resistance exit path ensures that a full 40" Melko cartridge maintains an ideal initial pressure drop of 1.5–2.5 psi, avoiding the "Exit Loss" turbulence found in inferior designs.

4. Technical Comparison: Supported vs. Non-Supported

5. Engineering Standards at Melko Filtration

To ensure reliability in demanding plants, we focus on:

Reinforced PP Material: Resistant to thermal expansion and hydraulic shocks (water hammer).

Uniform Flow Distribution: Engineered hole geometry ensures the entire 40-inch length filters evenly, preventing premature loading of the top section.

Conclusion: Why Partner With Melko Filtration?

For procurement officers and technical leads, selecting a 40-inch filter without a support core is a high-risk strategy. The hidden costs of premature clogging, unplanned downtime, and RO membrane fouling far outweigh the initial savings of coreless alternatives.

Melko Filtration’s core-supported design ensures your system remains structurally sound and hydraulically efficient from the first gallon to the last.
