Technical Standards for 40" Melt Blown Filter Replacement: A Data-Driven Guide

In high-volume industrial filtration, the decision to replace a filter element is a tug-of-war between maintenance budgets and system integrity. For a Technical Manager, relying on guesswork is not an option. This guide outlines the operational limits of 40-inch melt blown polypropylene filters, based on fluid dynamics and industry benchmarks.

1. Defining Initial Pressure Drop（ΔP）

The starting differential pressure is a critical baseline for system health. A well-engineered 40-inch cartridge (effectively four 10-inch elements in series) should exhibit minimal resistance to ensure maximum dirt-holding capacity.

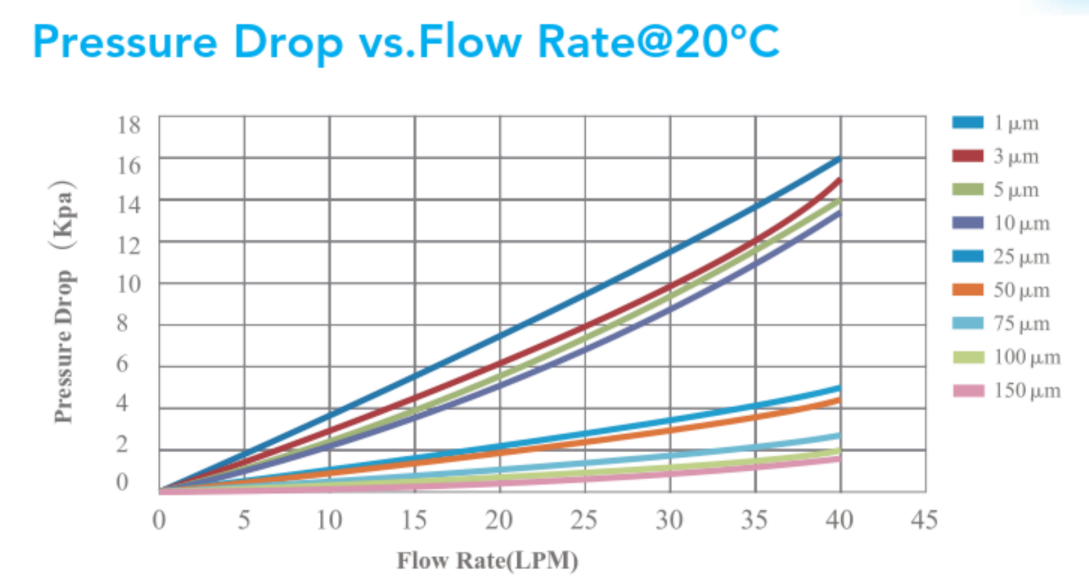

Figure 1: Initial Pressure Drop Curve (Standard 10" Base Component)

Engineering Note on Scalability:

Figure 1 represents the flow dynamics of our standardized 10-inch base element (tested at 20°C). Since a 40-inch cartridge consists of these calibrated segments, the data scales linearly:

At 1 μm: A 10" element at 20 LPM (sim 5.3 GPM) shows a ΔP of 8 Kpa (sim 1.16 psi).

Scaling to 40": Under the same "GPM-per-10-inch" ratio, a 40" cartridge will maintain this low-energy baseline of 1.16–1.5 psi at its rated total flow.

2. The Critical Change-out Threshold: 25–35 psi

While many polypropylene (PP) filters have a mechanical collapse rating of 40+ psi, operating at the limit is risky. We strictly recommend replacement between 25 and 35 psi (0.17–0.24 MPa).

The Risk of "Particle Unloading": As ΔP increases, the drag forces acting on captured contaminants can overcome the mechanical entrapment within the depth media. This leads to unloading—where particles are pushed into the downstream flow, potentially fouling RO membranes.

Structural Safety (ISO 2941): We verify our cartridges' structural integrity up to 40 psi. Replacing at 30–35 psi provides a necessary safety buffer to prevent media deformation or fiber migration.

3. The Hidden Cost of "Stretching" Filter Life

Many plants delay replacement to save on hardware, ignoring the Energy-Efficiency Paradox. Using the Hydraulic Institute pump optimization formula:

P = \frac{Q \times ΔP}{1714 \times \eta}

Case Study: For a system running two 40" cartridges at 40 GPM:

Assumptions: 0.10/kWh cost, 8,760 annual hours, and 65% pump efficiency.

Economic Impact: Increasing ΔP 15 psi to 35 psi adds approximately $1,200/year in electricity costs. The energy wasted by "squeezing" an extra week out of a dirty filter often costs more than the replacement cartridge itself.

Table 1: Correlated Performance Data (Water at 20°C)

References & Industry Standards

ISO 2941: Hydraulic fluid power – Filter elements – Verification of collapse/burst pressure rating.

NSF/ANSI 42: Drinking Water Treatment Units – Material Safety and Structural Integrity.

U.S. EPA Guidance Manual: Turbidity Provisions & Cartridge Filtration Compliance.

Engineering Principles of Depth Filtration: Analysis of pore-scale particle capture and drag-induced release.

Conclusion: Why Partner With Melko Filtration?

As a manufacturer, we don't just sell filters; we provide validated filtration solutions. Our 40-inch melt blown cartridges are engineered to meet these global standards, ensuring:

• Low-Energy Profile: Validated by the curves in Figure 1.

• Zero Unloading Guarantee: Structural stability up to the 30-psi change-out point.

• Total Cost Optimization: Protecting your downstream equipment and your bottom line.
