PP String Wound Vs. Stainless Steel Core Cotton Filters: How To Choose The Right Depth Filter for Your Application

1. Introduction

In depth filtration, "one size" never fits all. While PP Melt Blown filters are the standard for high-purity water, String Wound filters are the rugged specialists of the industrial world.
Choosing between a standard Polypropylene (PP) wound filter and a Bleached Cotton filter with a Stainless Steel (SS) core depends on two critical factors: Temperature and Chemical Compatibility.

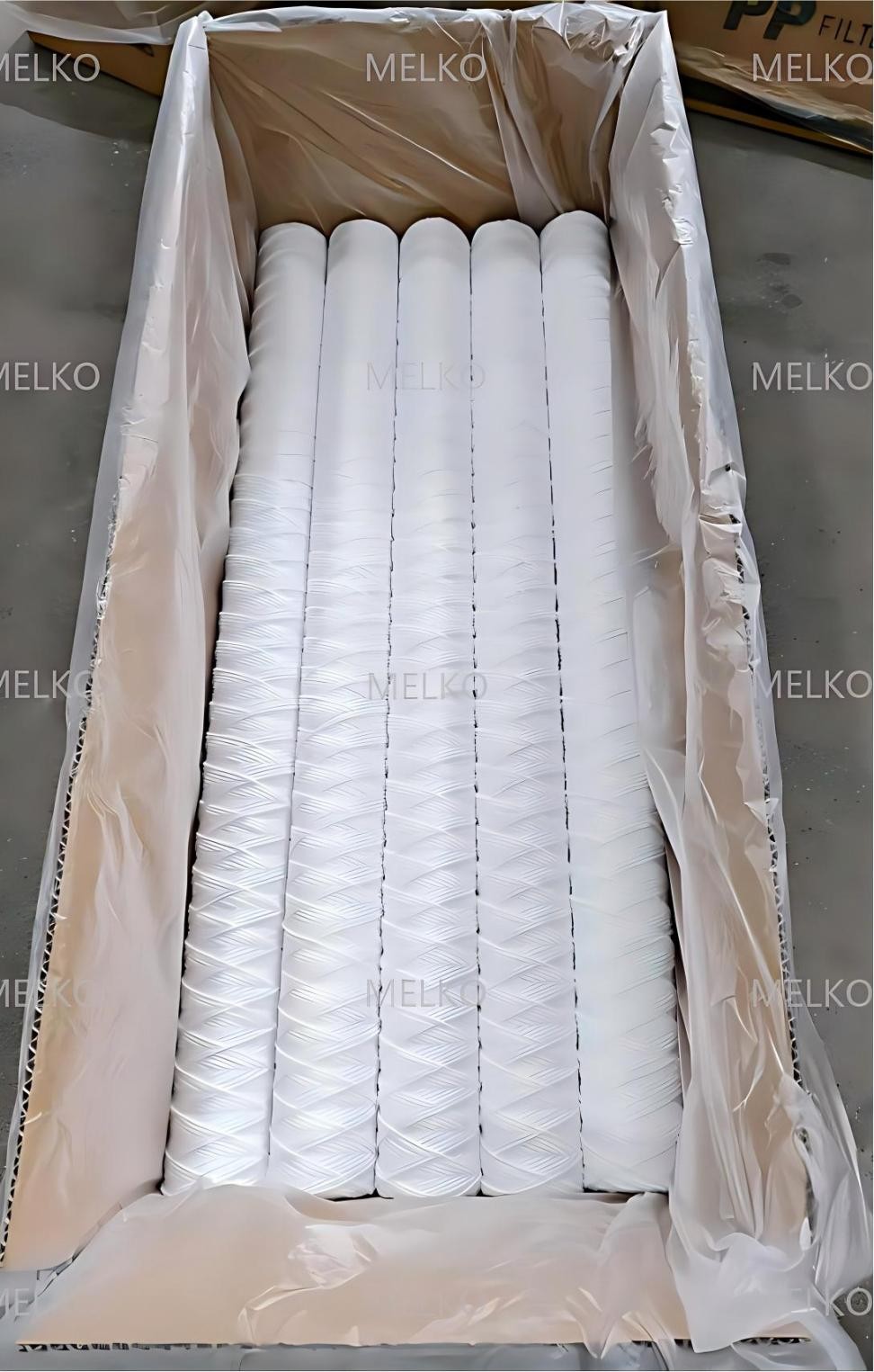

2. PP String Wound Filters: The Industrial All-Rounder

Standard PP line-wound filters (with PP cores) are the most economical solution for general sediment removal in non-potable water systems.

Best For: Industrial process water, cooling loops, and pre-filtration in chemical processing.

Chemical Resistance: Excellent resistance to acids and alkalis.

The Limitation: Because the core and the yarn are both Polypropylene, these filters should not be used in environments exceeding 60℃-80℃. Beyond this point, the structural integrity of the filter may be compromised (the core may soften or "bypass" occur).

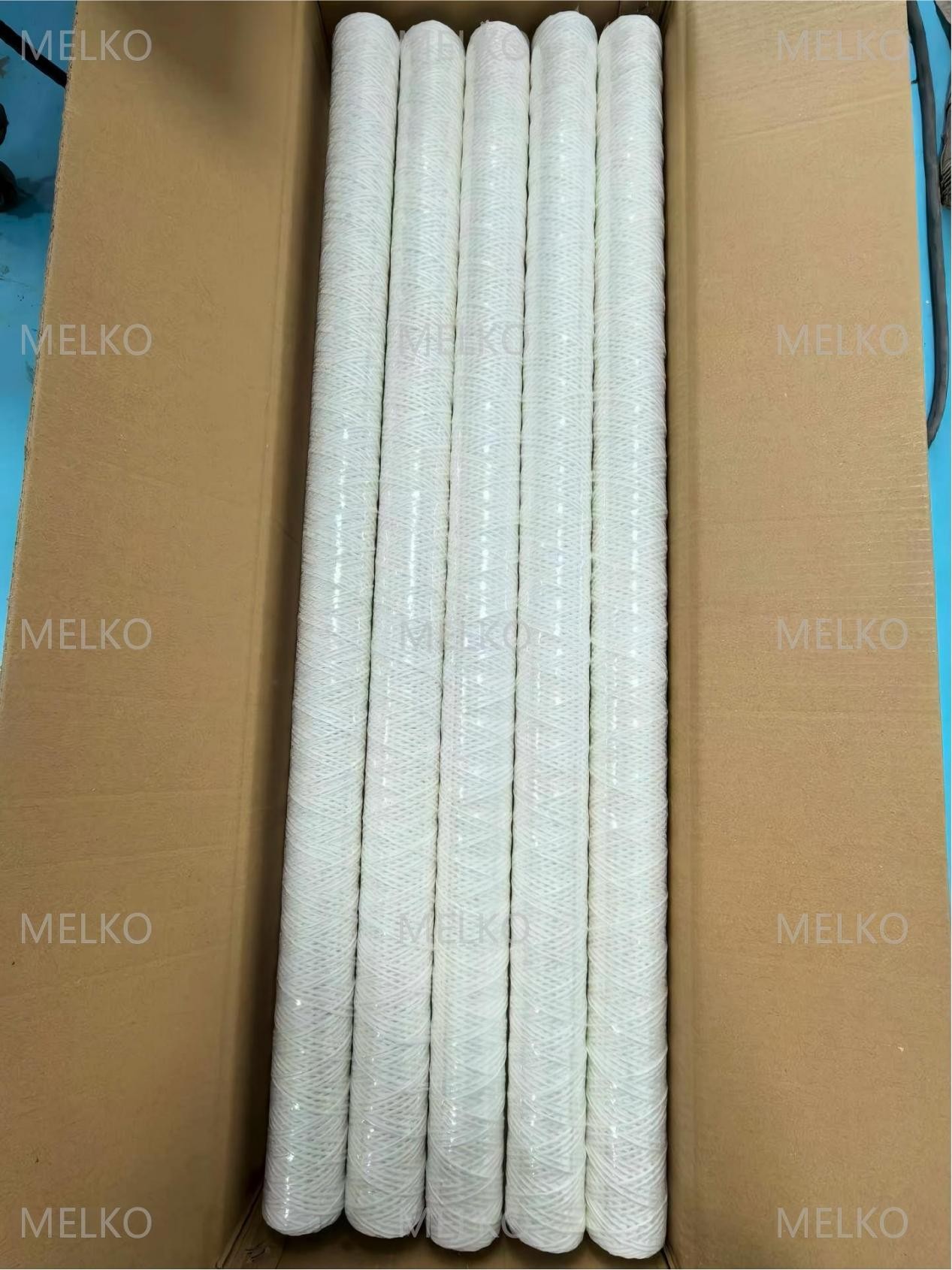

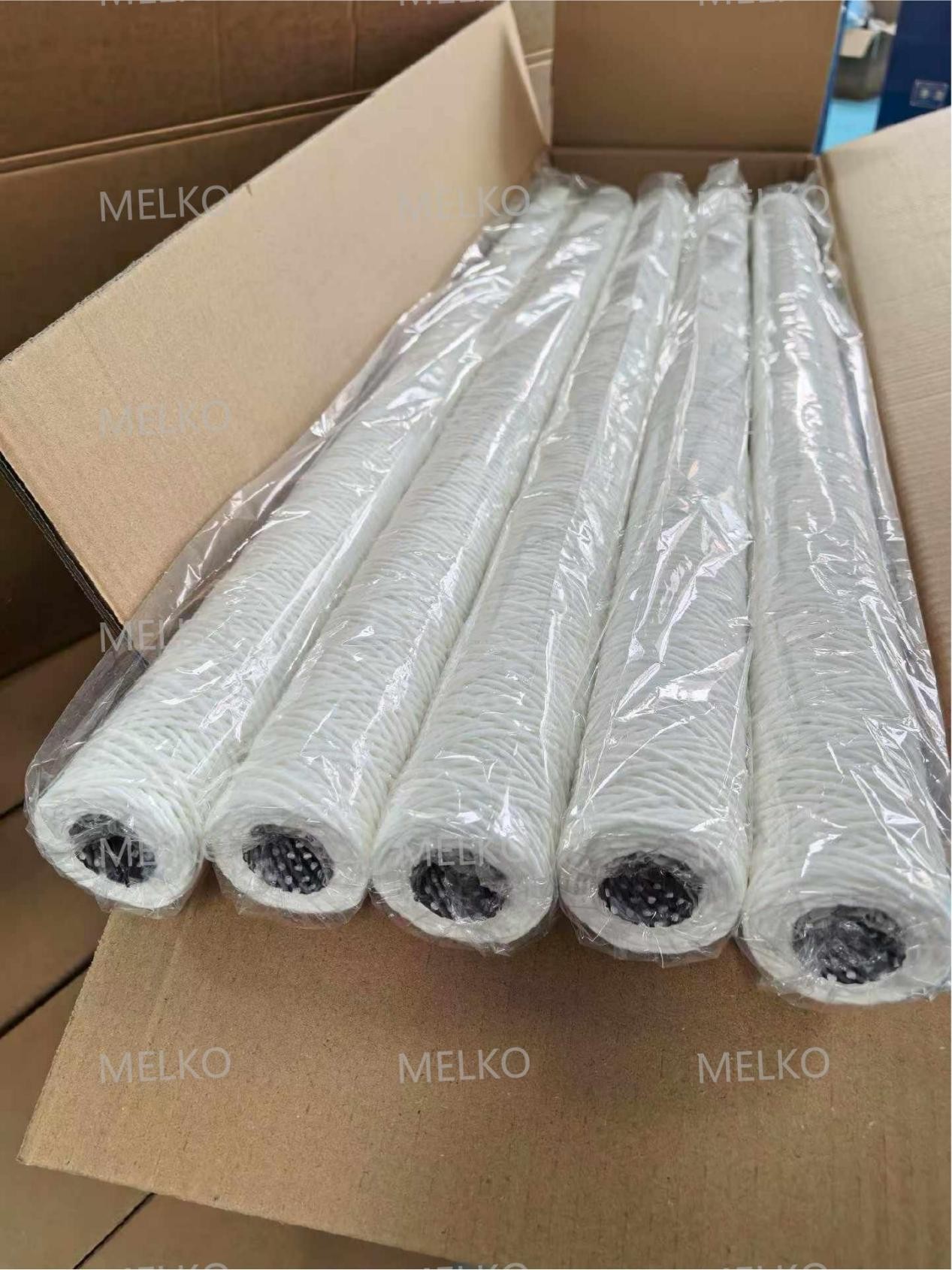

3. Cotton Yarn + Stainless Steel Core: The High-Temp Heavyweight

When your application involves high heat or aggressive solvents, the Bleached Cotton filter with a 304/316 Stainless Steel core is the industry answer.

High Temperature Performance: Unlike plastic-based filters, the SS core combined with cotton fiber can withstand temperatures up to 120°C - 150°C (250°F+). This is essential for:

Boiler blowdown and condensate return.

Hot vegetable oil filtration (Food processing).

High-temperature steam filtration.

Exceptional "Crush Strength": The stainless steel core provides a rigid skeleton that prevents the filter from collapsing under high differential pressure ($\Delta P$), even when heavily loaded with sediment.

No Surfactants: Our cotton is thoroughly bleached and degreased to ensure no "foaming" or leaching occurs during initial startup.

4. Technical Comparison: Making the Choice

5. Which One Should You Buy?

Choose PP String Wound if: You need an economical, durable filter for ambient temperature industrial water and don't require specific food-grade certifications.

Choose Cotton + SS Core if: You are filtering high-temperature fluids, hot oils, or your system experiences high-pressure spikes that would deform a plastic core.

Need NSF Certified Purity? If your application is for drinking water or strict food-contact, please refer to our [NSF-Certified PP Melt Blown Series].

6.Why Source from Our Factory?

As a direct manufacturer, we offer:

Custom Winding Tension: We can adjust the tightness of the weave to optimize for higher dirt-holding capacity or lower pressure drop.

Diverse Core Options: We offer PP, 304 SS, and 316 SS cores to match your specific chemical environment.

Fast Lead Times: We maintain a large inventory of raw SS cores and premium yarn to fulfill bulk orders quickly.
