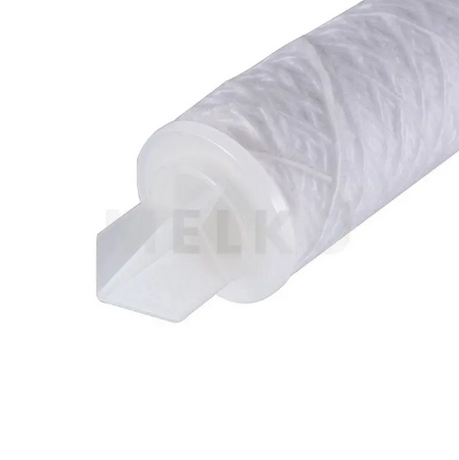

How To Choose The Right String Wound Filter Cartridge?

While often viewed as a "legacy" technology in the age of advanced membranes, the String Wound Filter Cartridge remains the gold standard for specific high-viscosity and high-sediment applications where modern pleated filters simply fail. Procurement specialists and technical buyers often face a critical dilemma: selecting a filter that effectively balances upfront cost with operational performance. An incorrect selection often leads to "tunneling"—where fluid bypasses the filtration media entirely—resulting in rapid pressure drop spikes or chemical leaching that can ruin downstream reverse osmosis (RO) membranes.

The stakes are high. A poor choice affects more than just the maintenance budget; it jeopardizes process integrity. This article moves beyond basic definitions to provide a robust procurement framework. We will guide you through evaluating material compatibility, conducting hands-on structural integrity testing, and sizing your filtration system to optimize Total Cost of Ownership (TCO).

Key Takeaways

• Match Tech to Texture: String wound filters excel in "slimy" or irregular particle applications where surface filters clog instantly; do not use them for absolute sub-micron sterilization.

• The "Pinch Test" Indicator: High-quality cartridges have firm structural integrity; soft spots indicate poor tension control and potential for tunneling.

• Temperature Dictates Core Material: Polypropylene cores fail above 60°C (140°F); switch to Stainless Steel or Tinned Steel for industrial heat applications.

• Flow Rate Rule of Thumb: Size your cartridge capacity at 2x the required system flow rate to maximize service life and reduce change-out labor.




Determining Suitability: When to Use String Wound vs. Pleated Filters

Before selecting specific SKUs or negotiating with a vendor, you must validate that string wound technology is the correct choice for your fluid stream. While pleated filters offer high surface area, they operate on a different principle that can be detrimental in specific environments. The decision rests on understanding the mechanics of depth versus surface filtration.

Depth vs. Surface Filtration

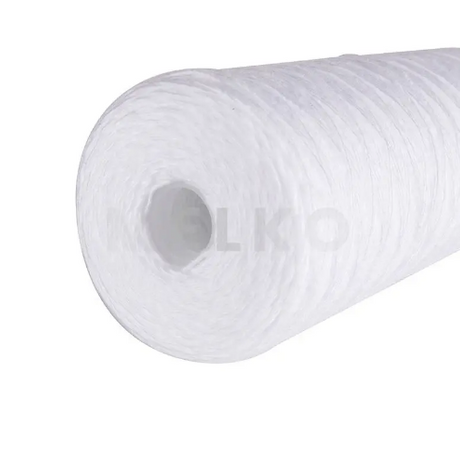

String wound cartridges utilize a "honeycomb" graded density structure. Manufacturers wind yarn around a core with varying tension: looser outer layers capture larger particles, while tighter inner layers trap finer contaminants. This creates a tortuous path for the fluid, utilizing the entire depth of the media. Unlike surface filters, which screen particles only at the outer face, a High dirt holding capacity filter like the string wound cartridge traps deformable particles—such as gels, rust, and sludge—throughout its volume. This structure prevents premature blinding (clogging) of the surface.

The "Viscosity & Slime" Factor

The texture of the contaminant dictates the technology. If you are dealing with clean, hard, and uniform particles, pleated filters are efficient. However, they fail quickly in "slimy" water applications, such as river water intake or biological treatment stages. In these scenarios, gelatinous contaminants film over the surface of a pleated filter instantly, causing pressure to spike before the filter utilizes its holding capacity.

String wound filters absorb these gelatinous contaminants into their depth matrix. They allow fluid to pass through alternative paths within the winding pattern even as sections become loaded. This characteristic makes them the superior choice for aggressive Industrial Water Pretreatment involving organic loads or cooling tower cycles.

Pressure Tolerance and Structural Integrity

In heavy-duty applications, differential pressure (Delta P) determines filter life. String wound cartridges generally withstand higher differential pressure—often up to 0.5 MPa—compared to standard pleated options, which typically rate around 0.4 MPa. The continuous strand construction, when wound with correct tension, reinforces the cartridge against collapse. This durability is essential when filtration systems experience hydraulic shock or when maintenance schedules are delayed, causing pressure to build beyond optimal change-out points.

Material Selection: Compatibility and Chemical Safety

Once you confirm the technology, the next step is material compatibility. A filter that dissolves or degrades in your process fluid introduces more contamination than it removes. You must evaluate both the yarn (filtration media) and the core (structural support) independently.

Yarn Material Guidelines

The yarn interacts directly with the chemical composition of the fluid. Selecting the wrong fiber leads to chemical attack, where the fiber swells, softens, or dissolves.

• Polypropylene string wound cartridge: This is the industry workhorse. It offers broad chemical resistance to acids, alkalis, and most solvents. It is FDA-compliant and non-foaming, making it the standard choice for Whole House Water Filtration, plating solutions, and general chemical processing.

• Cotton or polyester wound filter:

• Natural Cotton: Essential for processing oils, paints, and organic solvents (petrochemicals). It maintains integrity in fluids that might swell polypropylene.

• Bleached Cotton: Strictly reserved for potable water and food/beverage applications. Note that bleached cotton may impart a slight taste or odor initially if not flushed properly.

• Glass Fiber: When process temperatures exceed 150°C or involve strong oxidizing acids, glass fiber is the only viable option. It provides exceptional thermal stability but requires careful handling to prevent fiber migration.

Core Material Criticality

The core supports the yarn and prevents the cartridge from imploding under pressure. Temperature is the primary failure driver here.

• Polypropylene (PP): The economical standard. It works perfectly for temperatures under 60°C. If your system runs hotter, a PP core may soften and bow, breaking the seal at the housing ends.

• Stainless Steel (304/316): Mandatory for high-temperature applications or high-viscosity fluids (like resins or syrups). A steel core ensures the filter maintains its geometry even when differential pressure spikes.

Assessing Manufacturing Quality: The "Smell, Pinch, & Cut" Tests

You do not always need a laboratory to evaluate the quality of a sample. Physical inspection reveals significant details about the manufacturing standards. Poor tension control leads to "tunneling," where water pushes the yarn aside and bypasses filtration. Use these three sensory tests to vet samples.

The Pinch & Push Test

Pick up the cartridge and pinch the body firmly with your thumb and fingers. A high-quality string wound filter should feel firm and resilient. If it feels soft, spongy, or compresses easily against the core, the winding tension is insufficient. Next, try to push the yarn along the core axis. If the yarn slides or shifts easily, the filter is prone to fluid bypass. In operation, water pressure will push these loose strands apart, creating a tunnel for contaminants to pass through unfiltered.

Olfactory Check (The Smell Test)

Smell the cartridge, particularly if it is a Polypropylene unit. High-quality virgin polypropylene should be virtually odorless. A strong plastic, burnt, or chemical smell indicates the use of impure raw materials, recycled resins, or excessive processing aids (lubricants). These volatile compounds can leach into your product, affecting taste in beverages or purity in chemical processes.

Destructive Testing (Post-Use)

The most telling test occurs after the filter has been used. Take a used cartridge and cut it in half distinctively (cross-section).

• Good Result: You see dirt trapped evenly through the layers, getting progressively finer towards the center. This confirms the gradient density is working and you are utilizing the full volume of the filter.

• Bad Result: Only the outer 2mm is dirty, while the inner white sections are pristine. This indicates the filter acted as a surface screen, clogging prematurely and wasting 90% of its holding capacity.

Procurement Checklist: Selecting a String Wound Filter Manufacturer

When vetting a string wound filter manufacturer, look beyond the price list. The following factors ensure supply chain reliability and consistent product quality.

Customization Capabilities

Can the manufacturer adjust winding patterns or tension for your specific particulates? A standard off-the-shelf winding might not suit a slurry with unique specific gravity. A partner who can create a custom density gradient can solve chronic clogging issues.

Traceability and Compliance

For food, beverage, or pharmaceutical applications, traceability is non-negotiable. Does the manufacturer offer lot numbers on their packaging? This data is crucial for FDA compliance and tracking any quality deviations back to the raw material batch.

Fiber Migration Control

Ask specifically about their yarn processing techniques. "Fuzz" or loose fibers breaking off the cartridge can travel downstream. In Irrigation System Protection, these migrating fibers can clog fine spray nozzles or emitter drips, causing crop damage. High-quality manufacturers use air-blasting or thermal treatments to minimize loose fibers.

TCO Calculation

Finally, perform the math. If Vendor A offers a filter for $2.00 that lasts 3 days, and Vendor B offers one for $2.50 that lasts 6 days, Vendor B is vastly cheaper. The downtime required to stop a line and change filters costs far more than the fifty-cent difference in unit price.

Conclusion

Choosing the right string wound filter requires a balance of material compatibility, structural integrity, and correct sizing. It is rarely as simple as picking a micron rating from a catalog. The "right" filter utilizes a core that withstands your temperature, yarn that resists your chemicals, and a winding density that traps particles throughout the entire depth of the cartridge.

To move forward, we recommend starting with a "destructive test" of your current filters. Cut one open to see if you are utilizing the full depth of the media. If the center is clean, you are wasting money on unused filtration volume. Adjust your specifications based on this evidence to secure a cleaner process and a better bottom line.
